RotarySKU: SPO10N5G0-1

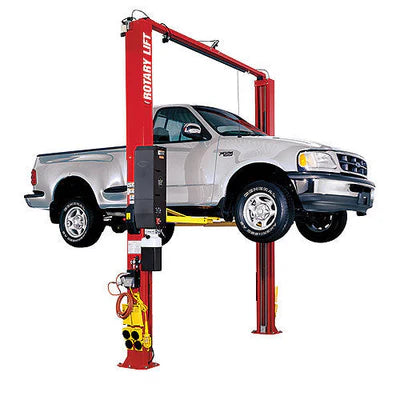

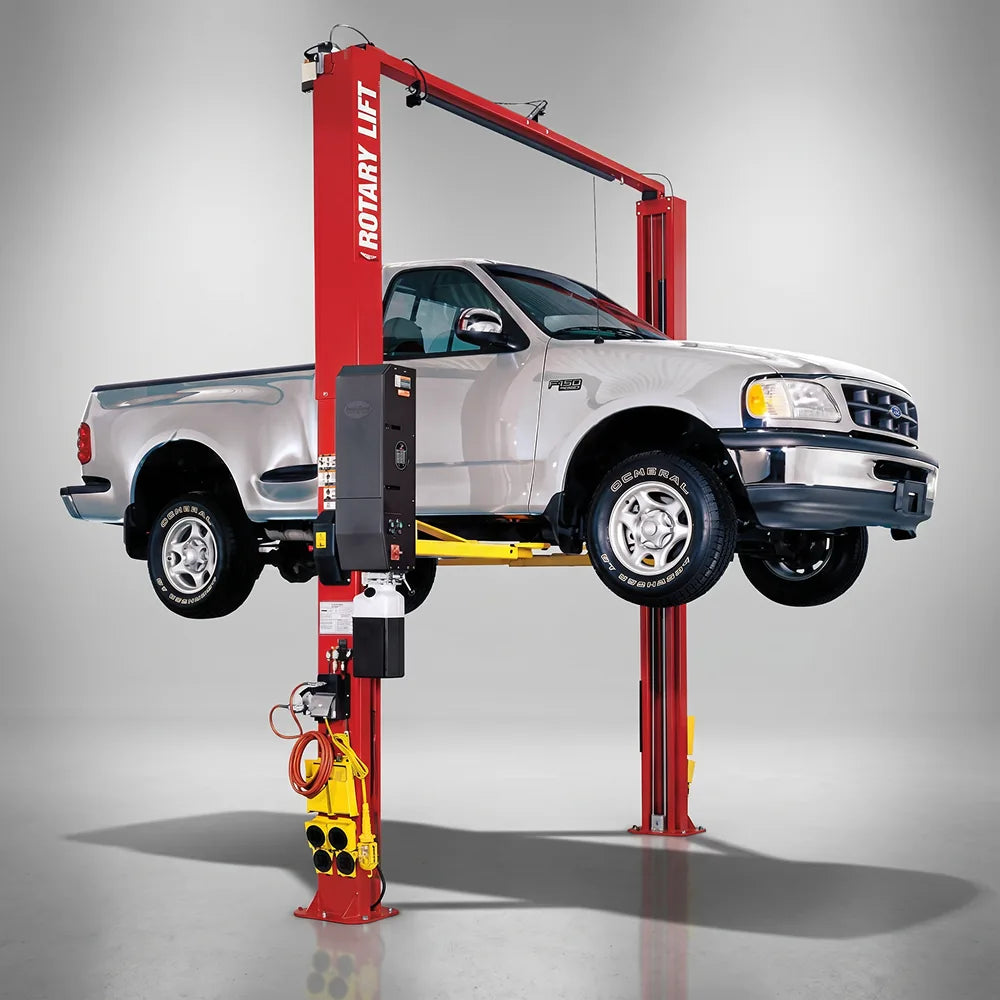

Rotary SPO10 Symmetric 10,000 lb. 2-Post Lift

The industry-standard symmetric 10,000 lb. two-post — original Double-S column design, true symmetric columns, three-position flip-up adapters, and available 3-stage arms with thread-up or truck adapters. ALI Gold Certified. Available with Shockwave™ for 2× faster rise and descent.

  • 10,000 lb. capacity
  • ALI Gold
  • Shockwave available
  • True symmetric
Starting at
$3,895
$3,895
Price shown is a mockup placeholder pending CEAS confirmation. Final pricing varies by configuration and freight.
Request a Quote Call for Free Demo

Factory-authorized · Free shop visit in your region · USA-based support

Built around this single column.

For over 30 years, Rotary Lift has built quality into every two-post they've designed — and the SPO10 has proven this time and time again. With features like the original single-piece Double-S shaped column, true symmetric columns, three-position flip-up adapters, available 3-stage arms with thread-up or truck adapters, and extended-height models, the SPO10 delivers everything your shop needs.

Need a little more speed in your shop? Supercharge your lift with Shockwave and get 2× faster rise and descent, Spotline-assisted vehicle spotting, and 110V DC power. With so many choices, why look anywhere else?

Trust the Industry Standard

  • True Symmetric column design
  • Customizable with your choice of arms and adapters
  • Extended-height models available for added versatility
  • ALI Gold Certified (SPO10X)

Available with Shockwave™ (SPO10SW)

Designed specifically for bays where service speed is paramount, Shockwave-equipped lifts are the fastest in the world.

  • 2× faster rise and descent
  • DC power with onboard 110V charger
  • Spotline motion-activated laser

What makes the SPO10 the industry standard.

  • Double-S column

    Original single-piece column design — the geometry that started the category and still defines it.

  • True symmetric

    Equal-arm columns load and unload from either side without specialized arm swing — every bay, every vehicle.

  • 3-position adapters

    Three-position flip-up adapters and 3-stage arms — thread-up or truck adapter, your choice.

  • ALI Gold Certified

    ALCTV-2017 third-party verification. The certification shop-floor inspectors look for.

  • Extended height available

    Extended-height column models for taller vehicles and higher service positions when your bay allows.

  • Shockwave option

    Speed upgrade — 2x faster rise/descent, onboard DC power, Spotline laser. See variant section below.

The numbers behind the lift.

Capacity

Lifting capacity
10,000 lb. (4,536 kg)
Lifting time
~50 seconds
Lowering time
~50 seconds
Motor
2 HP, 208/230V single-phase

Dimensions

Overall width
134" (3,404 mm)
Inside columns
119" (3,023 mm)
Drive-thru width
97" (2,464 mm)
Overall height
147.25" (3,740 mm)
Max rise (pad)
74.5" (1,892 mm)

Configuration

Column design
True symmetric, Double-S
Arm type
3-stage swing arms
Adapters
Three-position flip-up
Certification
ALI Gold Certified

Specifications are reference values from the manufacturer. Configurations may vary; final specifications confirmed at quote time.

Variant

Add Shockwave™ for 2x the speed.

Designed for bays where service speed is paramount. SPO10SW-equipped lifts are the fastest in the world.

  • 2x faster rise & descent
  • DC power with onboard 110V charger
  • Spotline motion-activated laser
Request Shockwave quote
Add Shockwave™ for 2x the speed.
  • ALI Gold CertifiedSPO10X variant
  • Factory authorizedDirect from Rotary Lift
  • USA-based support(855) 839-2626
  • Nationwide deliveryQuote-time freight
